YR Special Shaped Post Fence/ Railing
Introduction
The YR Special Shaped Post Railing features I-type posts and welded square tube fence panels, assembled with universal die-cast aluminum connectors and post caps. Its streamlined design combines traditional Oriental aesthetics with modern stability, creating a visually elegant and stable structure. The unique universal hinge connection design between the posts and fence panels allows for flexible installation at various angles. The surface is treated with hot-dip galvanizing and electrostatic powder coating, offering superior anti-corrosion performance.
FEATURES
Beautiful
The streamlined structural design adds a beautiful, three-dimensional effect to the fence, enhancing its visual appeal. The universal joint connection structure allows for installation at any angle, offering versatility in design.
Durable
The combination of hot-dip galvanized steel and high-adhesion electrostatic polyester powder coating ensures exceptional durability and corrosion resistance, significantly extending the product’s lifespan.
Practical
The system adapts to uneven terrains and installation at various angles. It is easy to install, user-friendly, and cost-effective.
Mesh
| Name | Parameter |
|---|---|
| Width(mm) | 2500/3000 |
| Height(mm) | 1000-2400 |
| Horizontal bar(mm) | 40 * 25 |
| Bar thickness(mm) | 1.2/1.5 |
| Vertical pole(mm) | 20/25 |
| Pole thickness(mm) | 1.0/1.2 |
| Number of the bars | 2/3 pieces |
| Pole spacing(mm) | 110 |
| Material | Q235 |
| Pole decoration | Stamping/Cast aluminum spear head/ABS |
| Name | Parameter |
|---|---|
| Size(mm) | 50 * 75 |
| Thickness(mm) | 1.5/2.0 |
| Height(mm) | 1000-3000 |
| Material | Q235 |
| Cap | die cast aluminum integrated structure |
Post

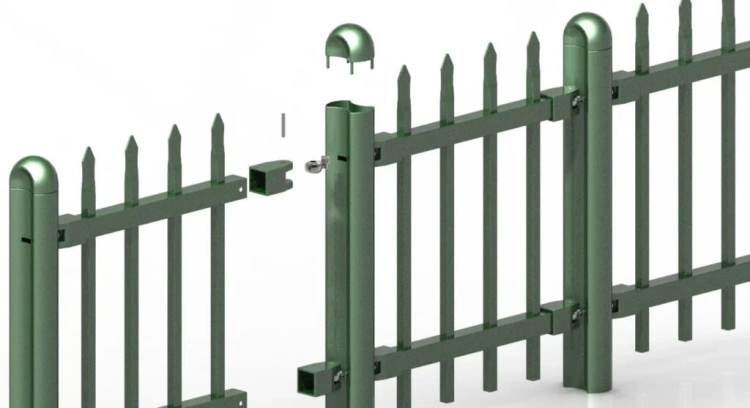

Connections
Perfectly aligned with the pillar, this product offers both elegance and an atmospheric aesthetic. The die-cast aluminum column cap is crafted from high-quality die-cast aluminum with a specialized surface coating treatment, ensuring excellent anti-corrosion performance.
The universal joint connection features a fiber structure, making it adaptable for installation at any angle.
Additionally, the U-shaped connector is secured with stainless steel anti-tamper bolts, providing robust and reliable assembly.
The substrate undergoes a hot-dip galvanization process, achieving a zinc coating of 80-120g/m². The outer layer is finished with a polyester electrostatic powder coating, featuring a thickness of 100-120μm. Customers can choose from over 200 colors available in the RAL color series.
The entire component is hot-dip galvanized with a durable zinc coating of 550g/m², ensuring exceptional corrosion resistance and long-lasting performance.
Surface Technology

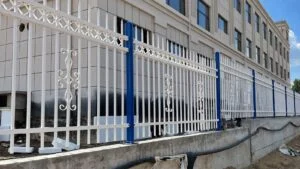

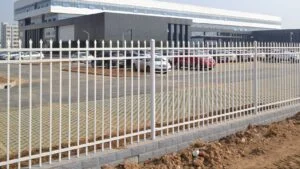

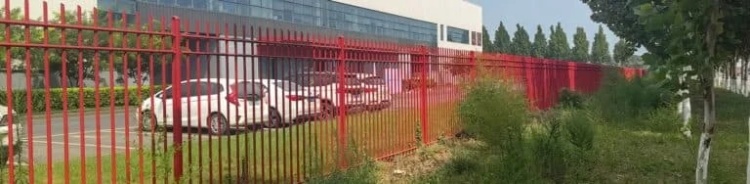

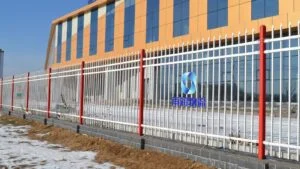

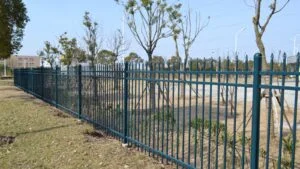

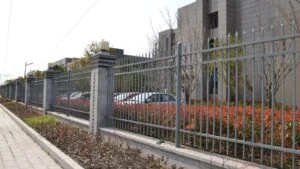

Project Applications
