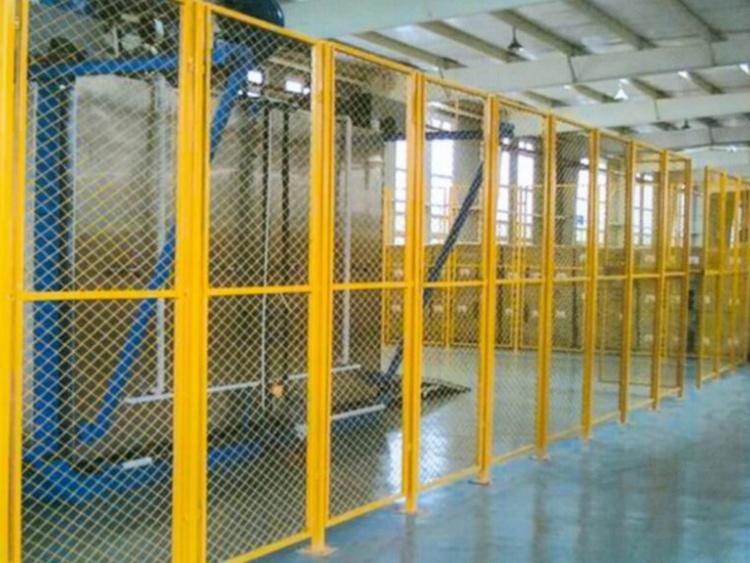

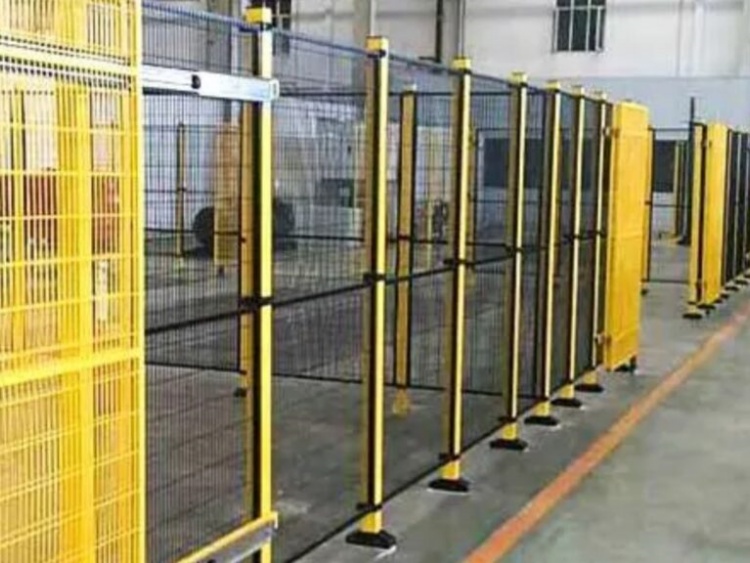

Workshop Equipment Isolation Fence
Introduction
The Equipment Safety Isolation Fence is specifically designed for industrial equipment protection, aiming to safeguard personnel, machinery, and production lines. The fence system is composed of H-shaped steel posts and panels, offering a lightweight yet robust structure that can be flexibly assembled into customized safety solutions. Its uniquely engineered connectors ensure a secure and precise connection between panels and posts, delivering superior safety performance, easy installation, and convenient maintenance. Optional intelligent configurations further enhance the system’s safety level to the highest standard.
Features
Aesthectic
Sleek structural design with an elegant and attractive appearance, providing a uniform visual effect from both inside and outside the fence. Surface coating treatment offers a wide range of color options.
Durable
With advanced surface treatments such as galvanization and electrostatic powder coating, the product offers corrosion resistance, rust prevention, and anti-aging properties, ensuring a service life of ≥10 years. The exceptional design of the connection structure and the high-quality selection of accessories ensure outstanding anti-corrosion performance.
Practical

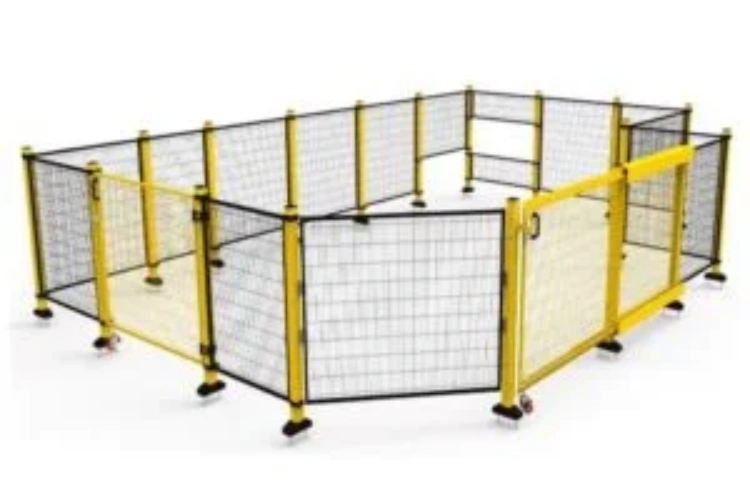

Modular design allows for DIY installation, adapting to various application scenarios. Easy to learn, simple and quick to install, effectively reducing costs.

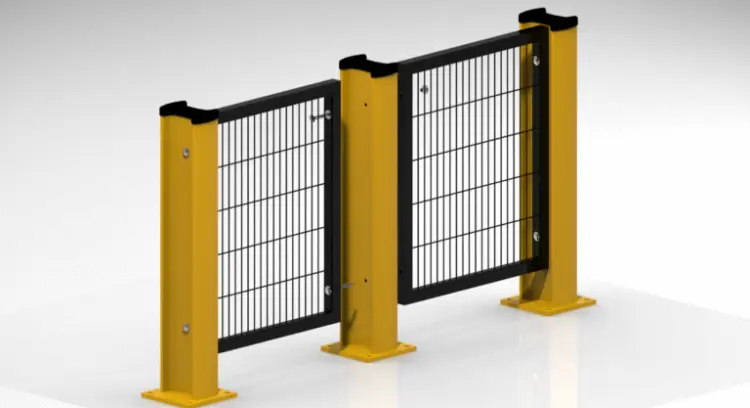

1, SSG Single panel side-hung swing gate
| Standard color | Post:Yellow (RAL 1023) Panel:Black (RAL9005) |
|---|---|
| Height(mm) | 1600/2200 |
| Bottom gap(mm) | 150 |

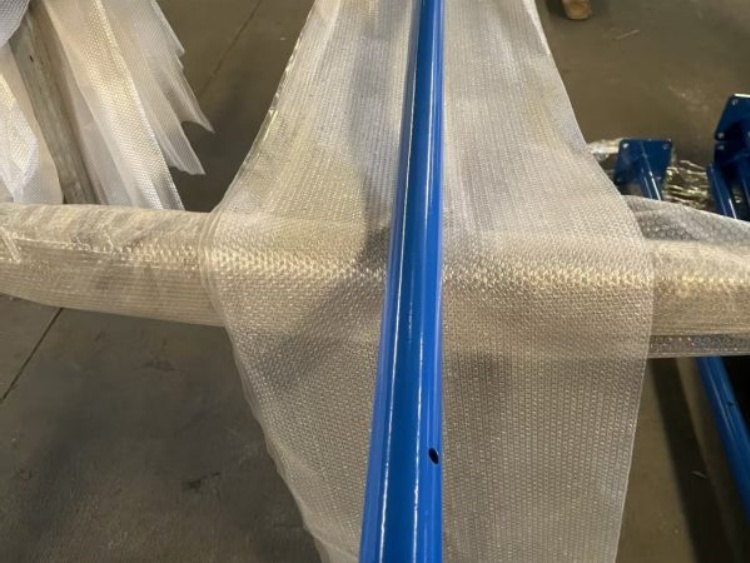

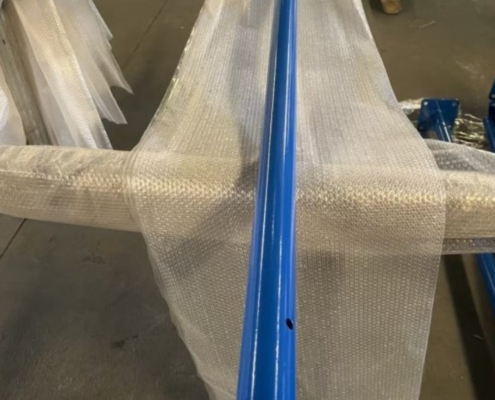

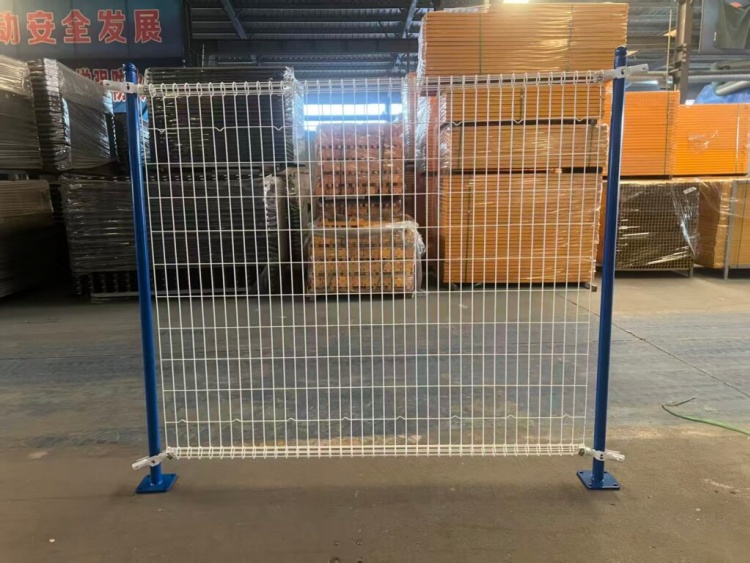

2, Post Specification
Post for the gate and its specification
| Panel height(mm) | 1450/2050 |
|---|---|
| Panel width(mm) | 800/1000/1200/1500 |
| Mesh size(mm) | 20*100/12.5*100/25*100 |
| Frame size(mm) | 20*20*1.5 |
| Wire diameter(mm) | Ø3.0+Ø3.0 |

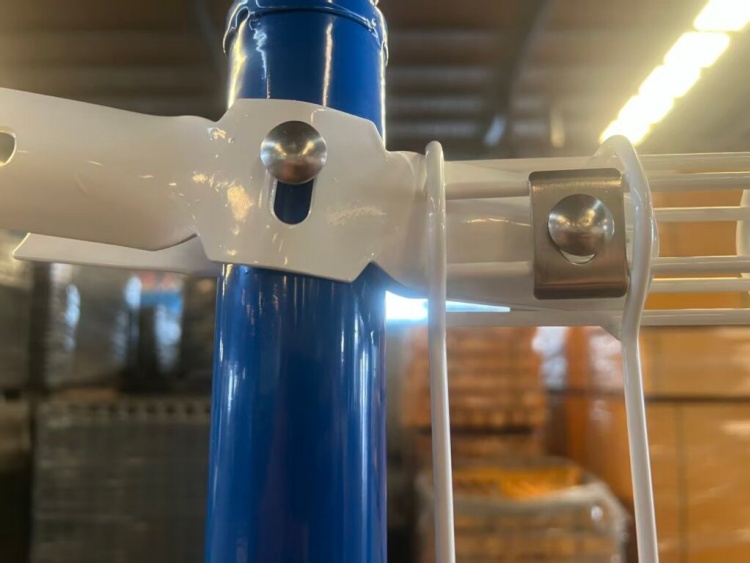

3, Mesh Connection
| Post size(mm) | “H“ shaped 44*70*1.5 |
|---|---|
| Post height(mm) | 1600/2220 |
| Fixing method | Assembly-type flange |
4, Surface Treatment(Anti-rust Treatment)
A. Hot Dipped galvanized(60-120g/m²) + Polyester Powder Coated (All colors in Ral)
B. Hot Dipped galvanized(121-550g/m²):
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².

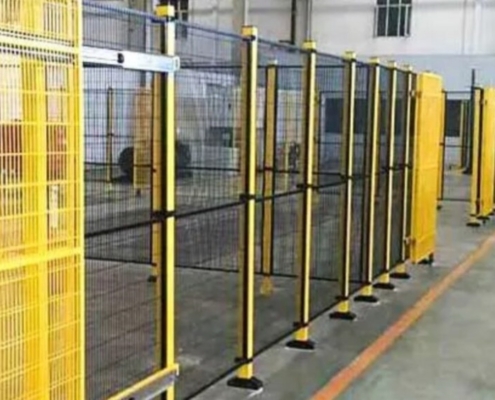

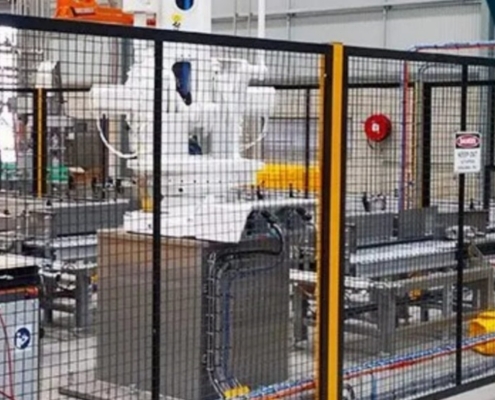

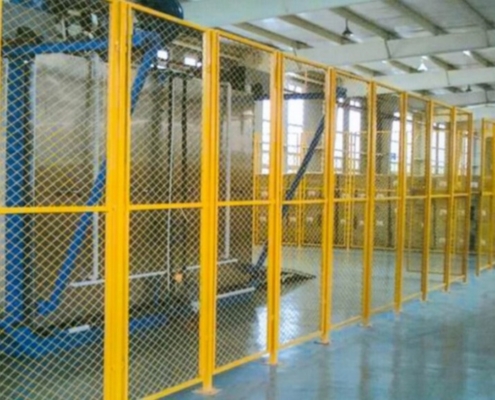

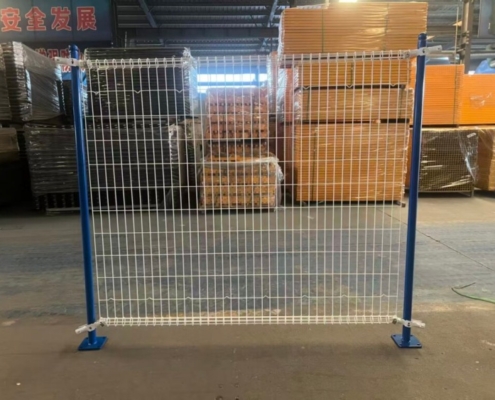

Galley
