TSG Tracked Sliding Gate
Introduction

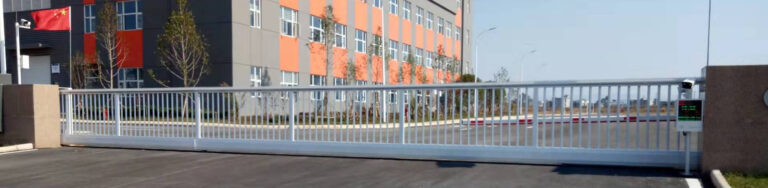

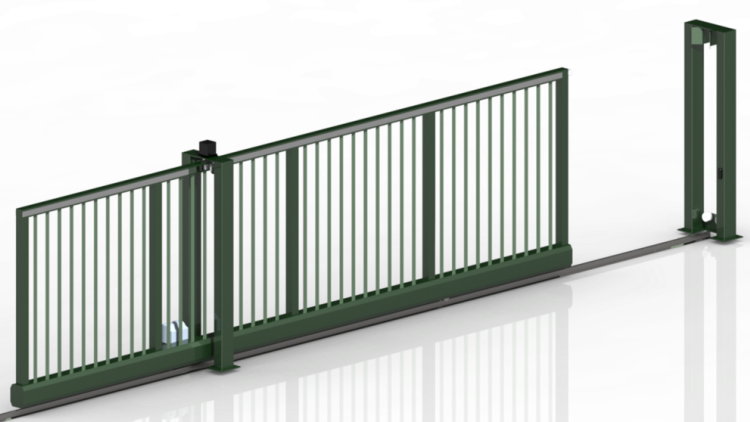

The TSG Tracked Sliding Gate integrates cutting-edge industrial design and manufacturing technology. It features a high-strength square steel substrate bottom beam, rail operation design, and a top-tier sliding gate motor, combined with an advanced control system. The gate undergoes multiple anti-corrosion processes and is coated with high-adhesion polyester powder, ensuring superior durability. Leading the domestic industry, the TSG gate excels in environmental protection, aesthetic appeal, structural design, safety, and offers an ultra-long service life.
Features
All-Steel High-Strength Structure
The door leaf is constructed using a welded frame structure, significantly enhancing the overall rigidity and strength of the gate.
Advanced Drive System
Equipped with an FAAC imported drive system, the gate provides stable performance with speeds ranging from 9 to 30 m/min. The system also supports remote control, allowing for convenient long-distance operation. Features include automatic delay for shutdown and activation, and status displays (on, off, run).
In case of a power outage, the gate can easily switch from electric to manual mode, ensuring smooth operation even in emergencies.
Excellent Anti-Corrosion Performance
The gate offers outstanding anti-corrosion protection, backed by a 10-year quality guarantee.
The base material is hot-dip galvanized with a zinc coating of ≥120 g/m? (double-sided).
The gate undergoes 19 pre-treatment processes, ensuring superior coating adhesion (Grade 0).
Aksu specialized outdoor powder coating protects the gate from peeling, powdering, and flaking.
Components & Parameters
| Item | Parameter |
|---|---|
| Width(mm) | 6000/8000/10000/12000/15000 |
| Height(mm) | 1600/1800/2000/2500/3000 |
| Bottom Beam Size(mm) | 150 * 200 * 5.0 |
| Bottom beam material | Q235 |
| Drive system | FAAC844ER |
| Control mode | Remote control/line control |
| Item | Parameter |
|---|---|
| Brand | FAAC Italy |
| Type | 844ER |
| Authentication | Conformité Européenne |
| Transmission mode | Rack and pinion |
| Limiting method | Magnetic induction limit |
| Clutch | Oil immersed double disc |
| Running speed（m/min） | 9～12 |
| Voltage(Vac +6% -10%; 50-60Hz) | 230 |
| Absorbed power(W) | 650 |
| Protection grade | IP44 |
| Ambient temperature（℃） | -20 ～ +55 |
| Maximum thrust(daN) | 110 |

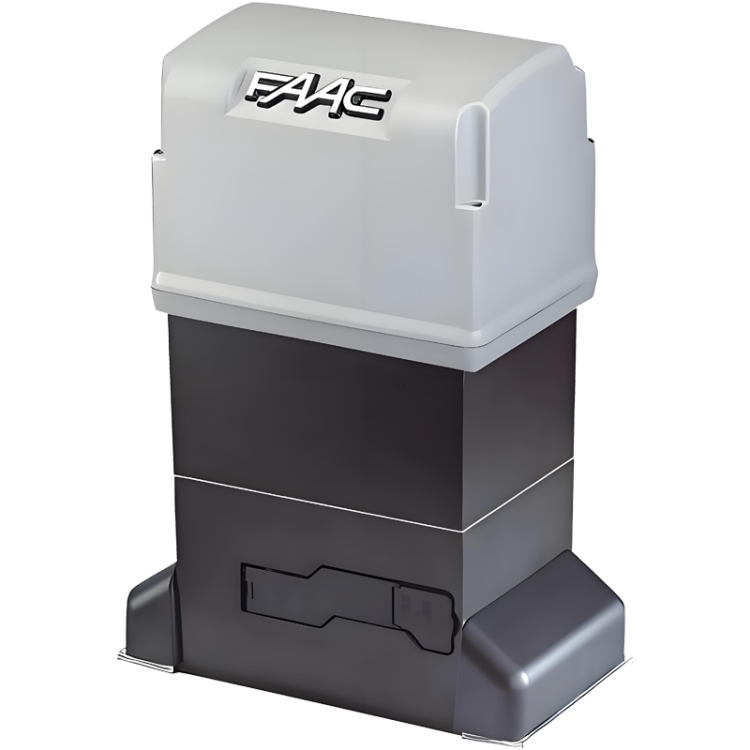

Electric Motor

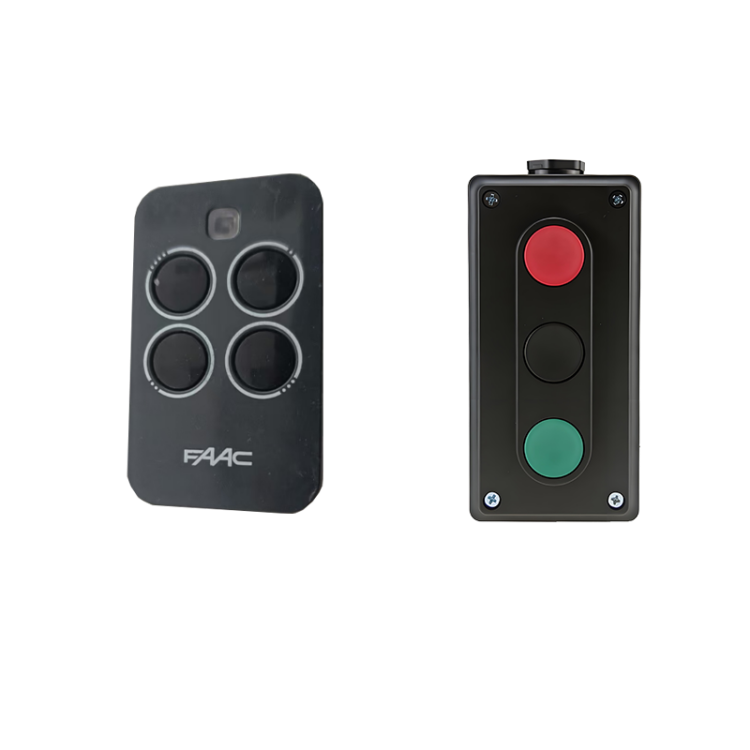

Remote Control
Control System Functions
Supports multiple control modes, including remote control, button switch, and long-range control.
Includes safety features such as gate-closing collision prevention and operational warnings.
Equipped with an overheating and overload protection system for enhanced safety.
A. Hot Dipped galvanized(60-120g/m²) + Polyester Powder Coated (All colors in Ral)
B. Hot Dipped galvanized(121-550g/m²):
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².

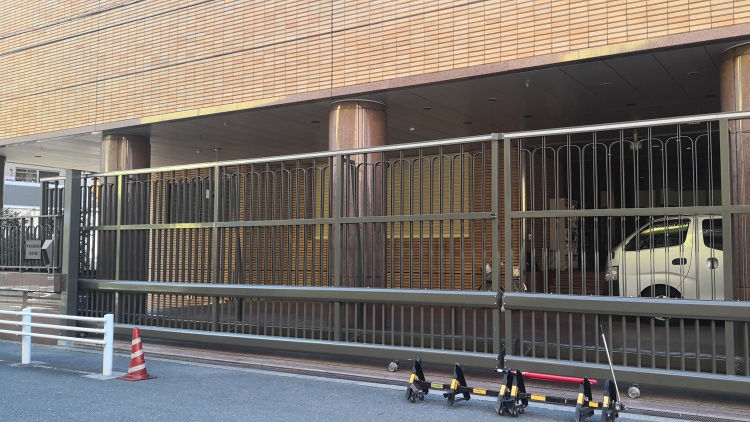

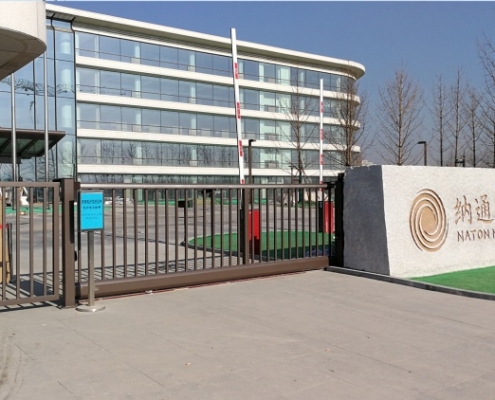

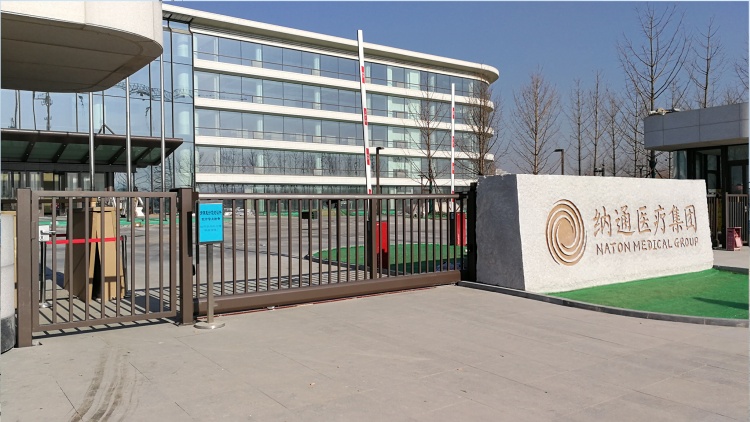

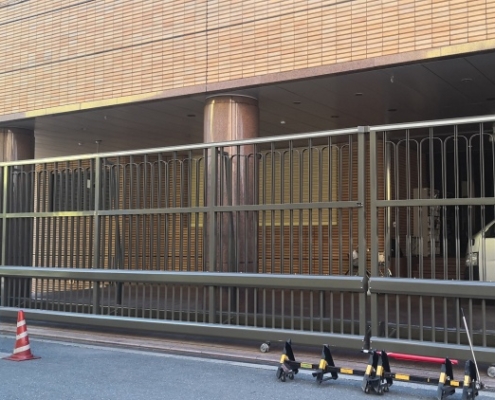

Project Applications
2DF-Decorative Fencing Panels & Square Post C

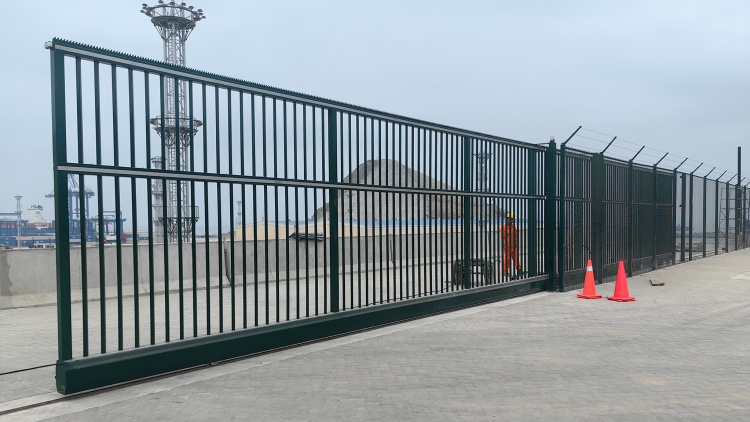

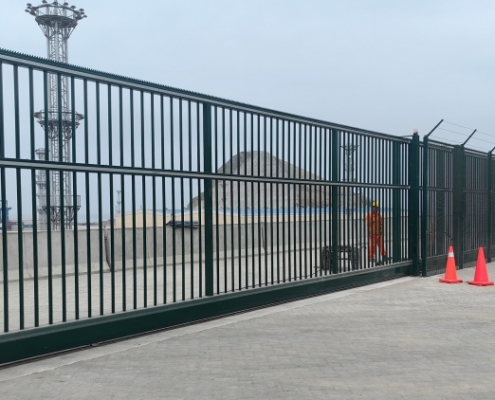

COSCO Shipping Port Chancay Peru S.A.
