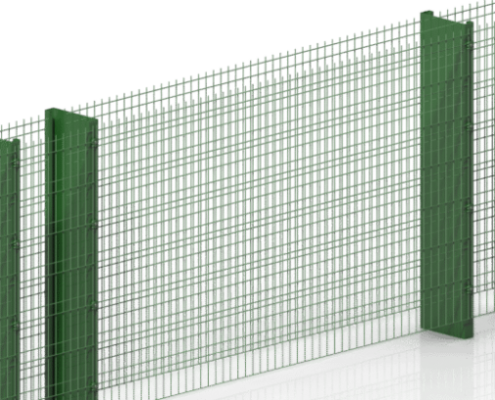

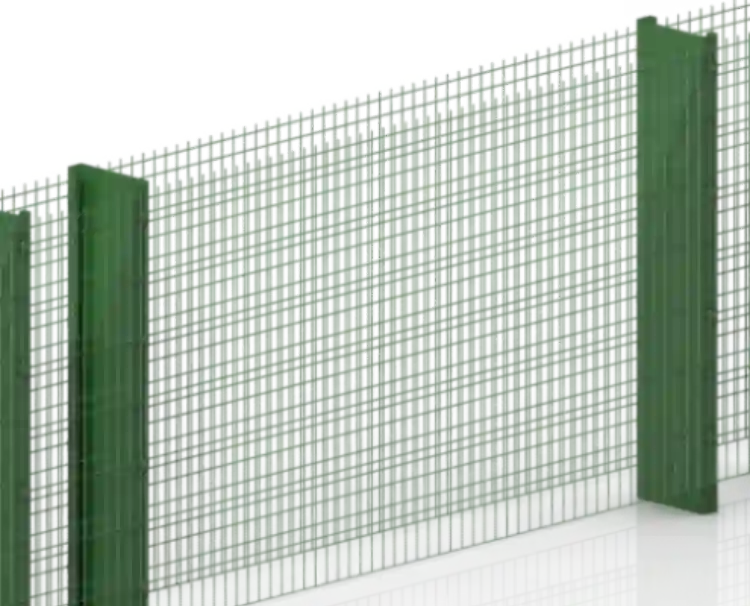

Gabion Wall Fence Panel
Introduction
Elevate your outdoor space with our Privacy Gabion Wall, where modern aesthetics meet practical innovation. Designed to be your co-designer’s dream, this fence brings together natural beauty, privacy, and performance—crafted with care to ensure your vision comes to life.
Features
Stunning Modern Look:
The structured wire mesh filled with natural or decorative stones adds a sleek, contemporary edge to any garden or yard. Whether minimalist or industrial, it perfectly complements modern architectural styles.
Natural Textural Appeal:
Irregular stone shapes create dynamic visual depth, offering an organic yet polished finish.
Exceptional Privacy & Acoustic Shielding:
Dense stone fill ensures high privacy and effectively dampens urban noise.
Easy & Fast Installation:
Built from wire cages that simply stack and fill onsite—no heavy machinery, no special skills needed. Setup is intuitive and efficient.

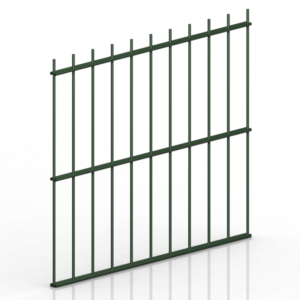

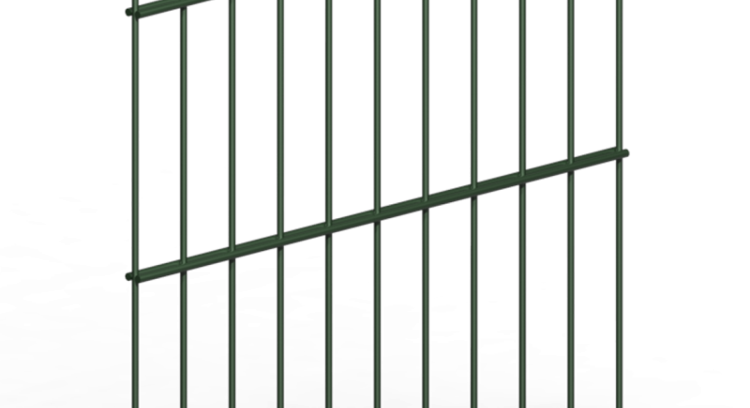

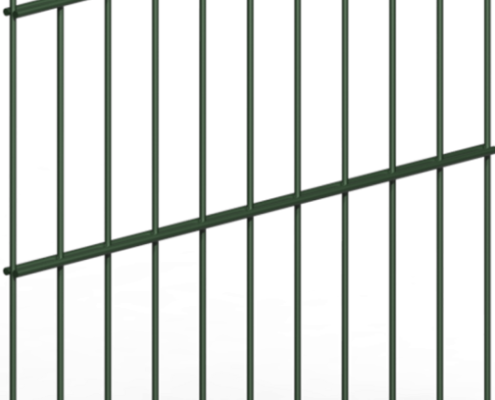

1, Single Horizontal Wire Mesh Panel
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1830/2030 |
| Mesh Width(mm) | 2500 |
| Wire Diameter(mm) | Ø6.0+Ø5.0+Ø6.0/Ø8.0+Ø6.0+Ø8.0 |
| Vertical Wire Spacing(mm) | 50 |
| Horizontal wire spacing (mm) | 200 |
| Material | Q195 |
| Zn coating (g/㎡) | 80-120 |
| Color | RAL Color Series |
2, Post Specification
| Name | Parameter |
|---|---|
| Size(mm) | 500 * 300 |
| Infill | Crushed stones |
| Material | Q235 |
| Height(mm) | 1900/2100 |
| Zn coating(g/㎡) | 80-120 |
| Color | RAL Color Series |
| Cover | ABS |

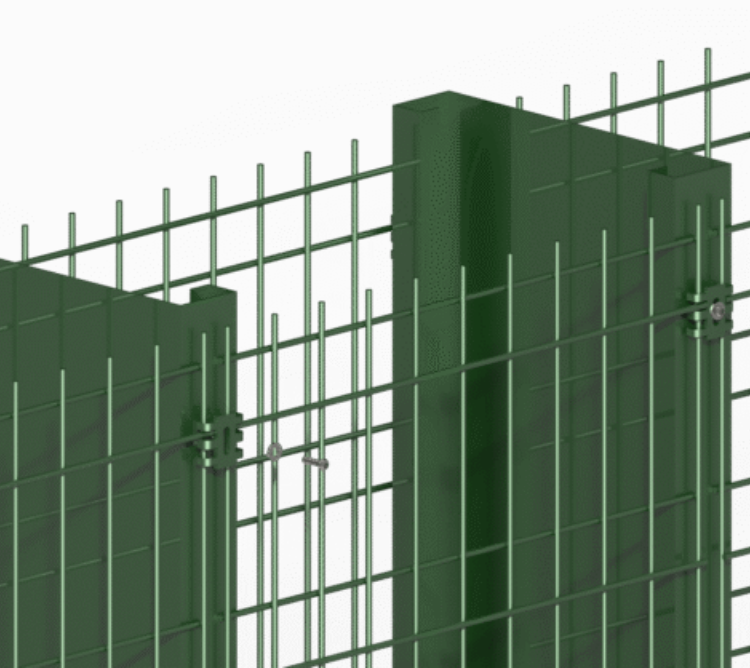

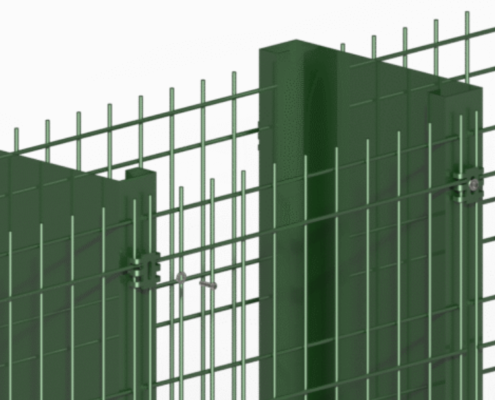

3, Mesh Connection
The integrated design of the post is connected to the mesh with dedicated interlocks and anti-theft bolts, which has strong anti-theft function.
4, Surface Treatment(Anti-rust Treatment)
A. Hot Dipped galvanized(60-120g/m²) + Polyester Powder Coated (All colors in Ral)
B. Hot Dipped galvanized(121-550g/m²):
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
