FR Square Shaped Post Fence/Railing
Introduction
The FR Square Shaped Post Fence or Railing features square tube posts and welded square tube fence panels, equipped with U-shaped connectors and stainless steel tamper-resistant bolts. Its streamlined exterior design blends traditional Oriental aesthetics with modern stability, adding elegance to its simple yet functional styling. The surface undergoes hot-dip galvanizing and electrostatic powder coating, providing exceptional anti-corrosion performance.
Features
Beautiful
The streamlined structural design is not only visually appealing but also adds a three-dimensional effect, enhancing the overall aesthetic.
Durable
The combination of hot-dip galvanized steel and high-adhesion electrostatic polyester powder coating ensures superior corrosion resistance, prolonging the service life of the product.
Practical
Designed to adapt to uneven terrain and various installation angles, the system is easy to install, user-friendly, and cost-effective.
Components & Parameters
mesh
| Name | Parameter |
|---|---|
| Width(mm) | 2500/3000 |
| Height(mm) | 1000-2400 |
| Horizontal bar(mm) | 40 * 40/40 * 60 |
| Bar thickness(mm) | 1.2/1.5 |
| Vertical pole(mm) | 20/25 |
| Pole thickness(mm) | 1.0/1.2 |
| Number of the bars | 2/3 pieces |
| Pole spacing(mm) | 110 |
| Material | Q235 |
| Pole decoration | Stamping/Cast aluminum spear head/ABS |
| Name | Parameter |
|---|---|
| Size(mm) | 60 * 60/80 * 80 |
| Thickness(mm) | 1.5/2.0 |
| Height(mm) | 1000-3000 |
| Material | Q235 |
| Cap | Steel cap |
Post
Connections
U-shaped connectors are securely fastened with tamper-resistant stainless steel bolts to ensure stability and durability.
The substrate is hot-dip galvanized with a zinc coating of ≥80 g/m², while the outer layer features a polyester electrostatic powder coating with a thickness of ≥100 μm. Customers can choose from over 200 RAL color options.
Additionally, the entire component undergoes hot-dip galvanization with a robust zinc coating of 550 g/m², ensuring superior durability and corrosion resistance.
Coating and Durability

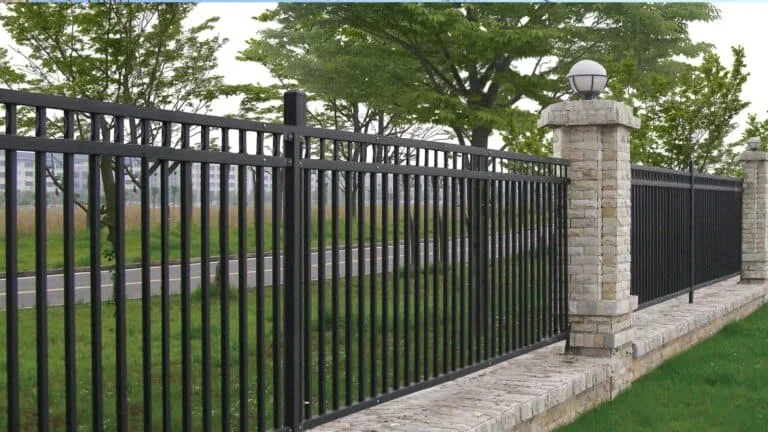

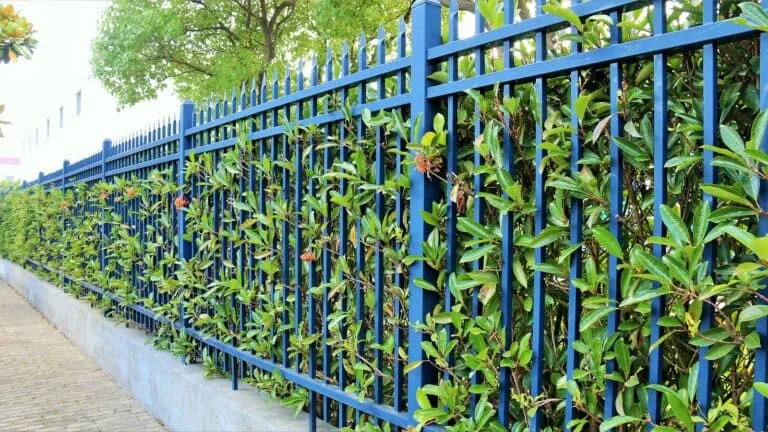

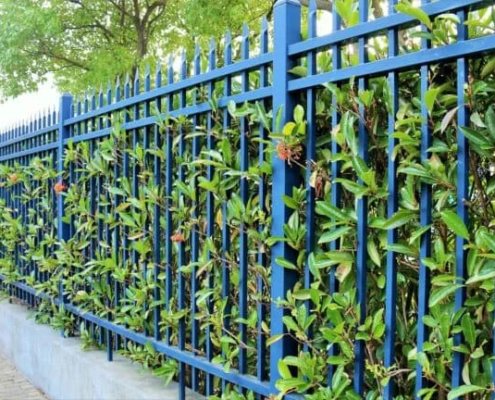

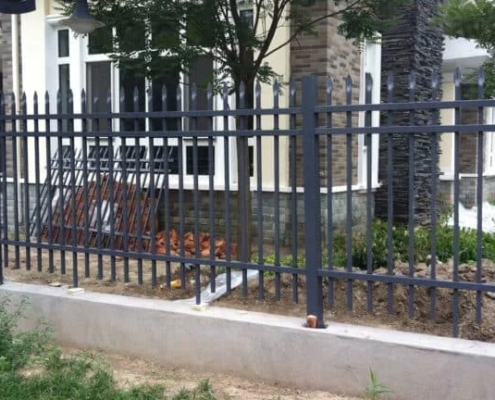

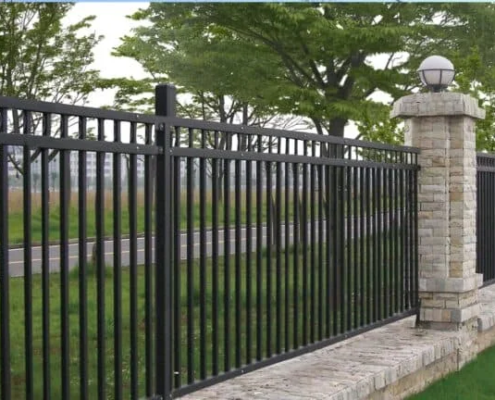

Project Applications
