2DF-Decorative Fencing Panels & Square Post C
Introduction

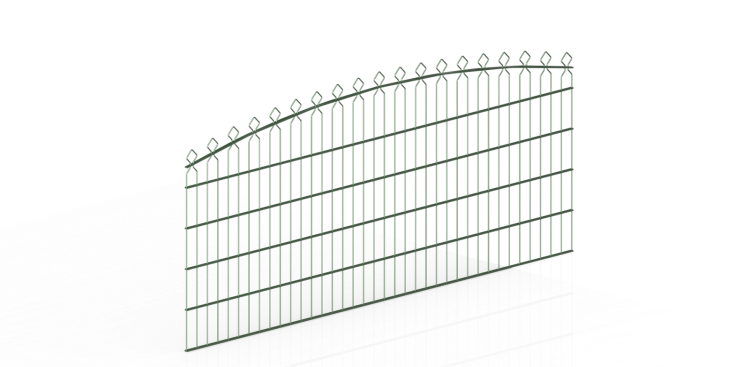

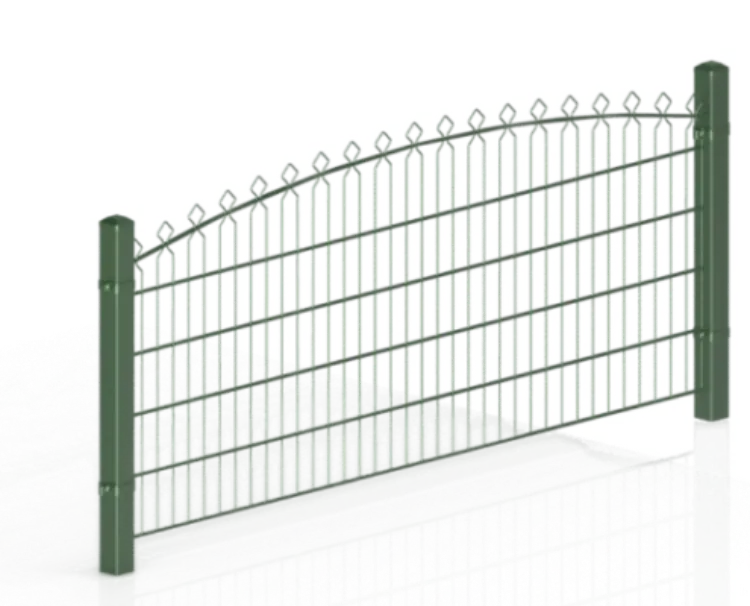

Our Decorative Fencing Panels offer a complete fencing solution that combines aesthetics with functionality. Designed for both residential and commercial spaces, this system includes matching single and double gates, ensuring a unified and elegant perimeter enclosure.
Crafted for those who value design without compromising strength, these panels provide a rigid and secure fencing option that enhances the appearance of any property.
Features

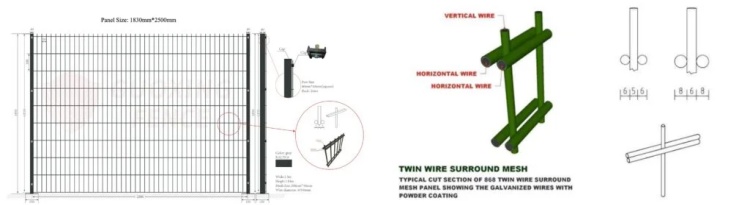

Ⅰ.Decorative design and more varieties of wire diameters
Stylish patterns and elegant lines make these panels ideal for enhancing gardens, homes, parks, and public areas.According to wire thickness, the fence can be divided into 5/4.5/5 type, 6/5/6 type and 8/6/8 type.The reinforced post is connected to the mesh through anti disassembly connectors, which has strong anti-theft function.The overall design of the fence has no focal points, providing excellent anti climbing performance.

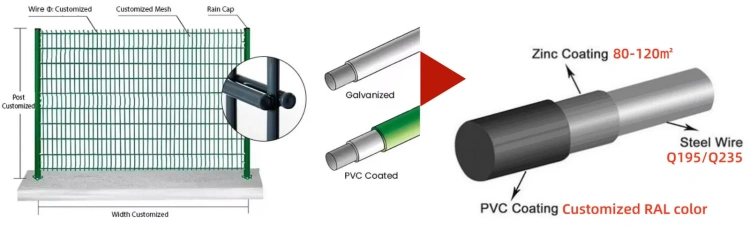

Ⅱ.The 2D fence has high zinc anti-corrosive coating weight
Protected with a high-quality anti-rust coating for superior weather resistance and minimal maintenance.Manufactured from high-strength steel to ensure long-lasting durability and resistance to impact.And the combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray of anti-corrosion coating technology ensures the extraordinary service life of the product;

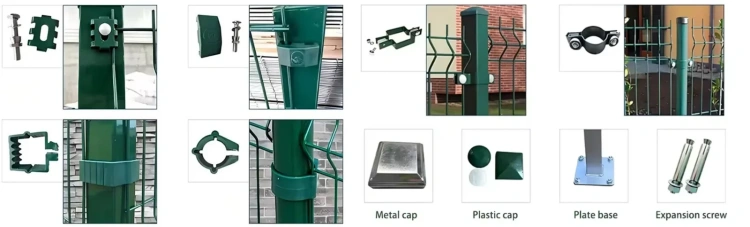

Ⅲ. Practical to install
Adapt to uneven terrain and installation from different angles;Easy to master, simple and fast, and cost-effective.
1, Single Horizontal Wire Mesh Panel
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1600/1800 |
| Mesh Width(mm) | 2500 |
| Wire Diameter(mm) | Ø6.0+Ø5.0+Ø6.0/Ø8.0+Ø6.0+Ø8.0 |
| Vertical Wire Spacing(mm) | 65 |
| Horizontal wire spacing (mm) | 200 |
| Material | Q195 |
| Zn coating (g/㎡) | 80-120 |
| Color | RAL Color Series |

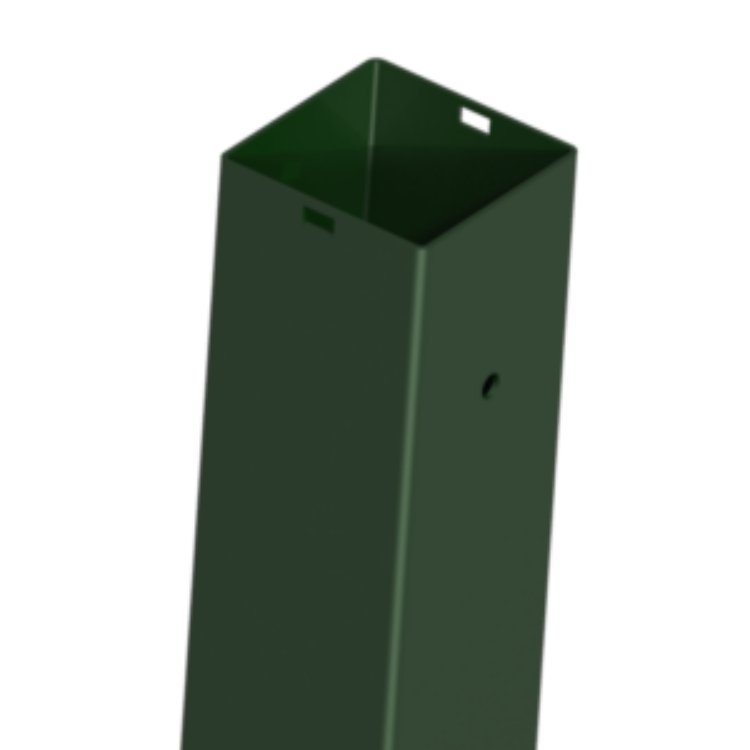

2, Post Specification
| Name | Parameter |
|---|---|
| Size(mm) | 80 * 80 |
| Thickness(mm) | 2.0 |
| Material | Q235 |
| Height(mm) | 1900/2100 |
| Zn coating(g/㎡) | 80-120 |
| Color | RAL Color Series |
| Cover | ABS |

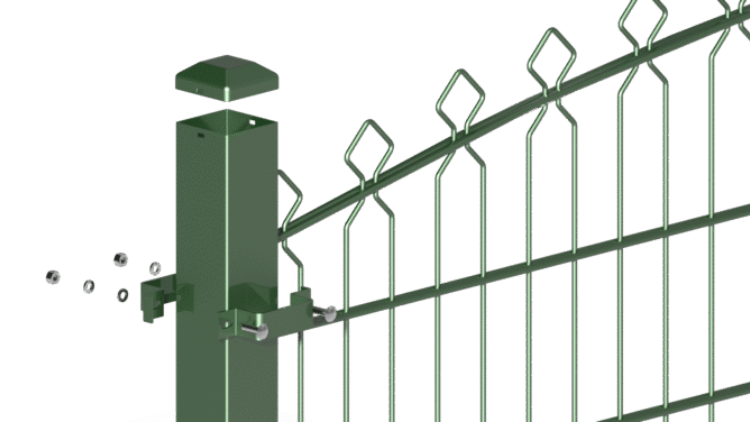

3, Mesh Connection
The integrated design of the column is connected to the mesh with dedicated cards and anti-theft bolts, which has strong anti-theft function.
4, Surface Treatment(Anti-rust Treatment)
A. Hot Dipped galvanized(60-120g/m²) + Polyester Powder Coated (All colors in Ral)
B. Hot Dipped galvanized(121-550g/m²):
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².

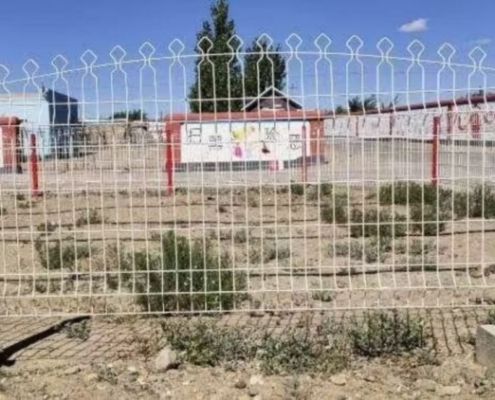

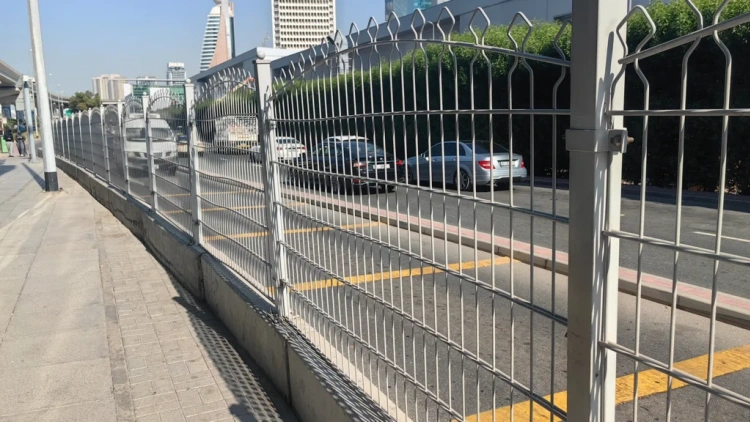

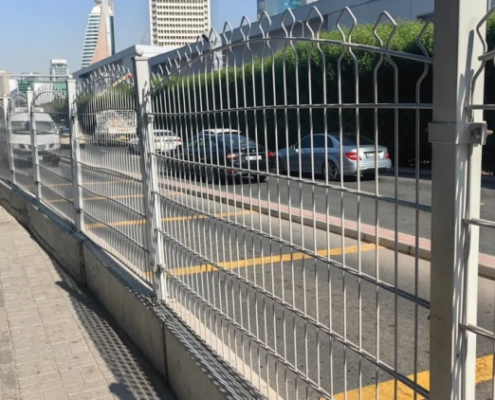

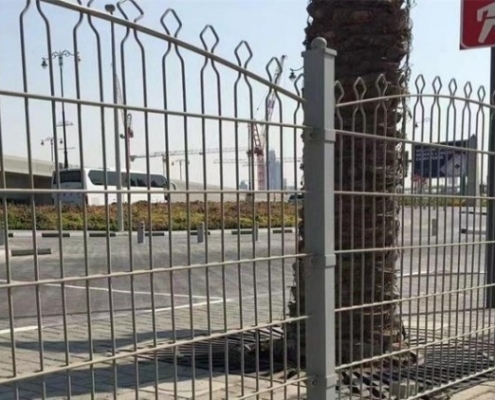

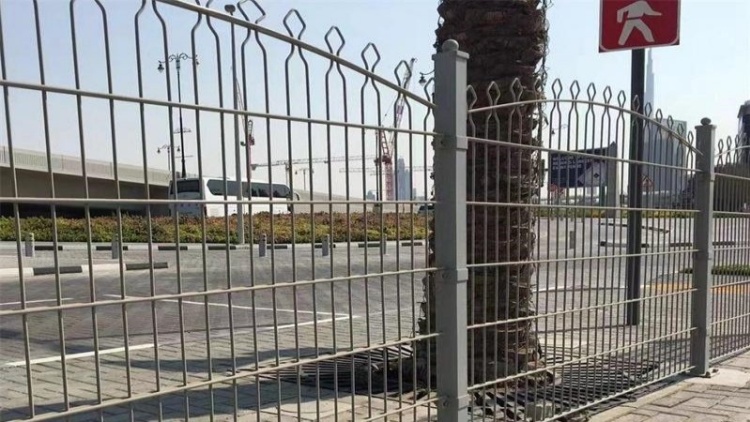

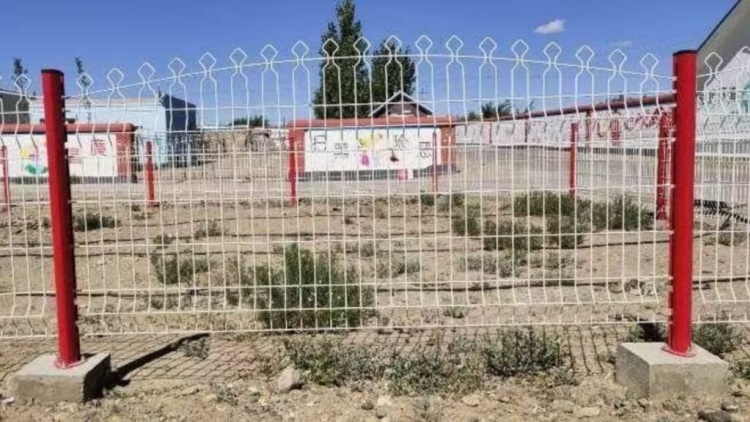

Application Gallery
